RCC SWIMMING POOL – NEW CONSTRUCTION RESIDENTIAL TOWER

CASE STUDY

Structure

Pools, Wet Areas & Water-Retaining Structures

Structure

Pools, Wet Areas & Water-Retaining Structures

Service

Pools, Wet Areas & Water-Retaining Structures

Duration

7 Weeks

Location

Al Furjan, Dubai

Summary

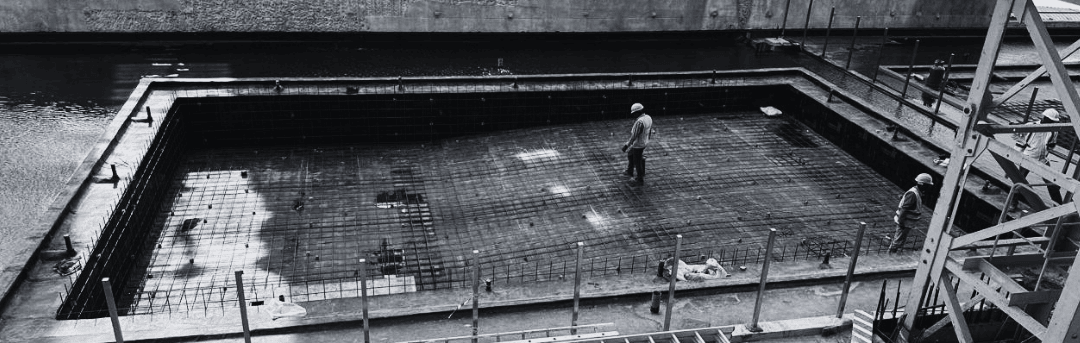

A new-build luxury pool required an engineered, multi-layer waterproofing system designed to endure constant immersion and provide durable structural protection. Requirements emphasized a seamless integration of materials and coatings to form a reliable barrier suitable for long-term use under rigorous water pressure and chemical exposure.

Technical Diagnosis

Primary risks included shrinkage cracks and leakage at construction joints, necessitating a solution with robust internal and external joint protection. Performance against water ingress and aggressive pool chemicals were essential for system longevity.

Implemented Solution

Use of crystalline waterproofing injectable treatments applied along the structural slab to penetrate and seal micro-cracks and voids

Installation of hydrophilic waterstops at all construction joints to provide internal water-tight barriers that accommodate movement and pressure

Dual-layer bitumen sheet membrane reinforced with a protection board, ensuring robust waterproofing under hydrostatic load and mechanical protection

Flexible cementitious waterproofing to provide surface protection and chemical resistance, followed by surface and pressure testing to verify system integrity

THE RESULTS

Pool achieved verified, maintenance-free watertightness

All joint and crack risks resolved for long-term integrity

Use of crystalline waterproofing injectable treatments applied along the structural slab to penetrate and seal micro-cracks and voids

Installation of hydrophilic waterstops at all construction joints to provide internal water-tight barriers that accommodate movement and pressure

Dual-layer bitumen sheet membrane reinforced with a protection board, ensuring robust waterproofing under hydrostatic load and mechanical protection

Flexible cementitious waterproofing to provide surface protection and chemical resistance, followed by surface and pressure testing to verify system integrity

THE RESULTS

Pool achieved verified, maintenance-free watertightness

All joint and crack risks resolved for long-term integrity
