TERRACE WATERPROOFING – RESIDENTIAL TOWER DUBAI

CASE STUDY

Structure

Roof, Podium-Level & External Spaces

Structure

Roof, Podium-Level & External Spaces

Service

Substructure, Below Ground & Substrate

Duration

12 weeks staggered

Location

Al Furjan, Dubai

Summary

Waterproofing of an open terrace on upper floor of a residential tower intended for outdoor seating and landscaping. System had to withstand irrigation, cleaning water, and daily exposure, while providing long-term leak protection for floors below. Bitumen, cementitious, and polyurea systems were combined to cover all risk zones and compatible with final stone and landscape finishes.

Technical Diagnosis

Slab was part of roof of units below, constant wetting, drainage intricacies, transitions and expansion joints, high UV exposure.

Implemented Solution

Crack repair using crystalline admixture/hydraulic resin injections and screed correction for drainage

Coving and detailing at wall-to-floor transitions

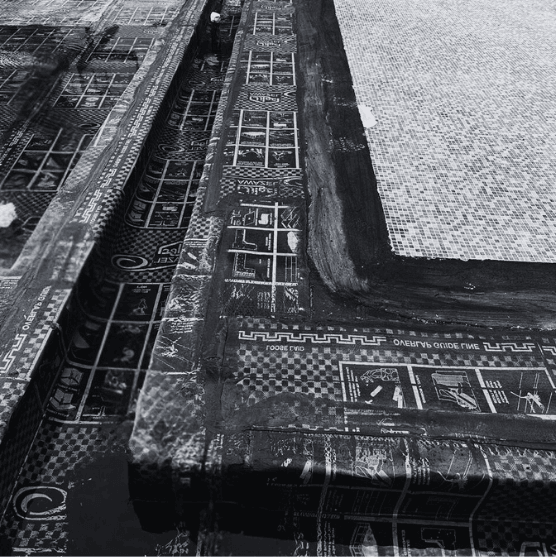

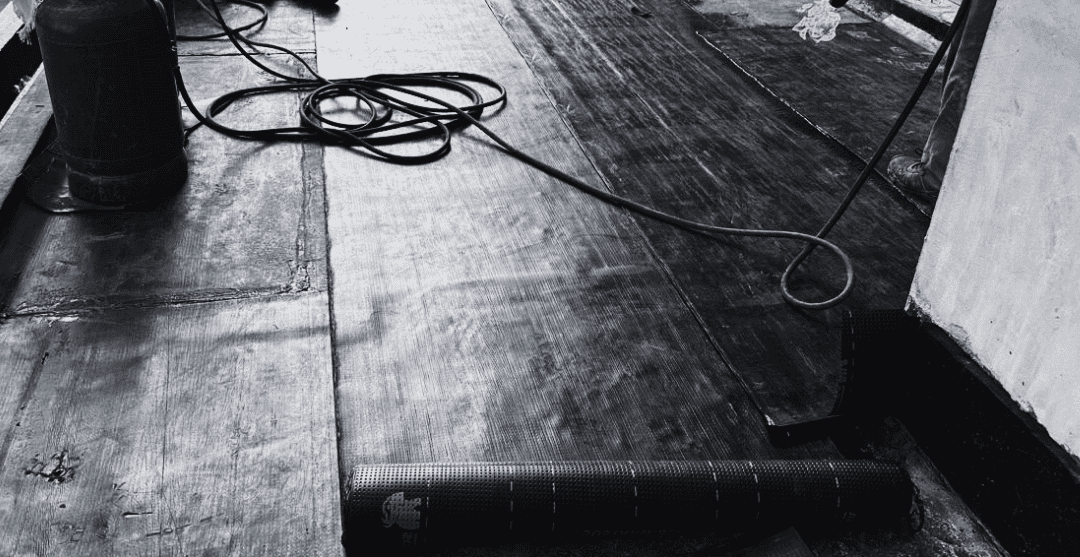

Torch-applied SBS and anti-root bitumen membranes installed as base waterproofing

Installation of Protection Board to protect membrane layers

THE RESULTS

Terrace slab fully watertight with no seepage into floors below

System compatible with outdoor stone/landscape finishes

Crack repair using crystalline admixture/hydraulic resin injections and screed correction for drainage

Coving and detailing at wall-to-floor transitions

Torch-applied SBS and anti-root bitumen membranes installed as base waterproofing

Installation of Protection Board to protect membrane layers

THE RESULTS

Terrace slab fully watertight with no seepage into floors below

System compatible with outdoor stone/landscape finishes
